OnCommand API Services: Representation of cDOT clusters

This is a php-based code that provides a web-interface to show a list of cDOT cluster, SVMs, Aggregates, Volumes and LIFs. The workflow is simple, you provide login credentials and API endpoint. RESTful API calls are made on your behalf and the result is presented in a table with pagination, sort and filter features. The data collected from OnCommand API Services is cached and refreshed every 10 minutes.

In the event of lack communication with OnCommand API Services, the cached data is displayed with a warning message and the option to work offline (In case this application is running on a laptop).

Pre-requisites

• git
• docker
• docker-compose
• OnCommand API Services fully configured with OCUM

Installation

1. Clone this:

    git clone https://github.com/adlytaibi/ocapi


    cd ocapi


2. SSL certificates

    mkdir web/sslkeys


   1. Self-sign your own certificates: (modify web to match your server)

       openssl req -x509 -nodes -newkey rsa:4096 -keyout web/sslkeys/host.key -out web/sslkeys/host.pem -days 365 -subj "/C=CA/ST=Ontario/L=Toronto/O=Storage/OU=Team/CN=web"


   2. Or sign your SSL certificate with a CA:

      1. Create private key, generate a certificate signing request

          openssl genrsa -out web/sslkeys/host.key 2048


      2. Create a Subject Alternate Name configuration file san.cnf in ‘web/sslkeys’

          [req]
          distinguished_name = req_distinguished_name
          req_extensions = v3_req
          prompt = no
          default_md = sha256
          [req_distinguished_name]
          C = CA
          ST = Ontario
          L = Toronto
          O = Storage
          OU = Storage
          CN = ocapi
          [v3_req]
          keyUsage = keyEncipherment, dataEncipherment
          extendedKeyUsage = serverAuth
          subjectAltName = @alt_names
          [alt_names]
          DNS.1 = ocapi
          DNS.2 = ocapi.acme.net
          IP.1 = 1.2.3.4


      3. Generate a certificate signing request

          cd web/sslkeys/
          openssl req -new -sha256 -nodes -key host.key -out ocapi.csr -config san.cnf


      4. In your CA portal use the ocapi.csr output and the following SAN entry to sign the certificate, you should get a certnew.pem that can be saved as host.pem

          san:dns=ocapi.acme.net&ipaddress=1.2.3.4


      5. Copy your host.pem certificate files to web/sslkeys

3. docker-compose

    docker-compose up -d


   • Note: This container uses docker’s bridge networking by default. When running this container on the OnCommand API Services server, the line network_mode: host in docker-compose.yml should be uncommented. Also, keep in mind that this container is configured by default to listen on port 443. Therefore, the OnCommand API Services server should be listening on port 8443 for example.

4. The login page can be accessed using the URL below:

    https://<IP_address>


   (or if accessing from the same guest https://localhost)

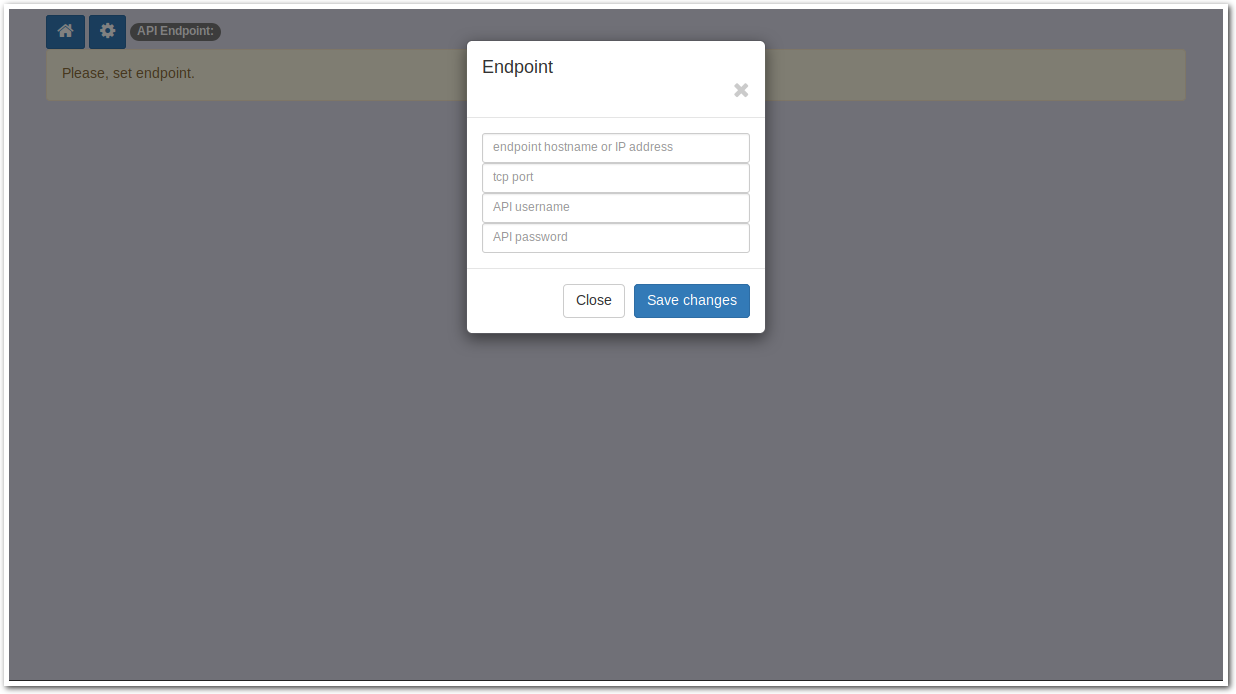

5. Enter the API endpoint and credentials already setup on OnCommand API Services with a minimum role of ‘Operator’



6. Sort, filter, pagination throughout all pages. Clusters’ view:



7. Nodes’ view:



8. Aggregates’ view:



9. SVMs’ view:

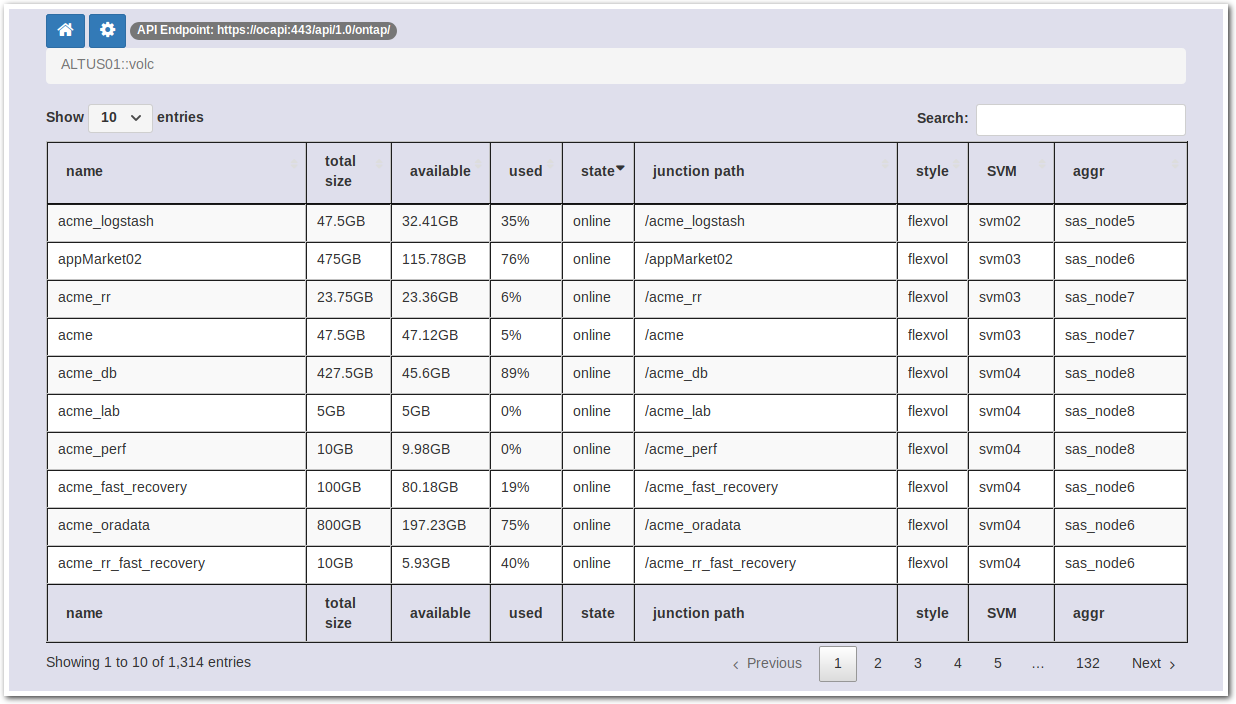

10. Volumes’ view at the cluster level:

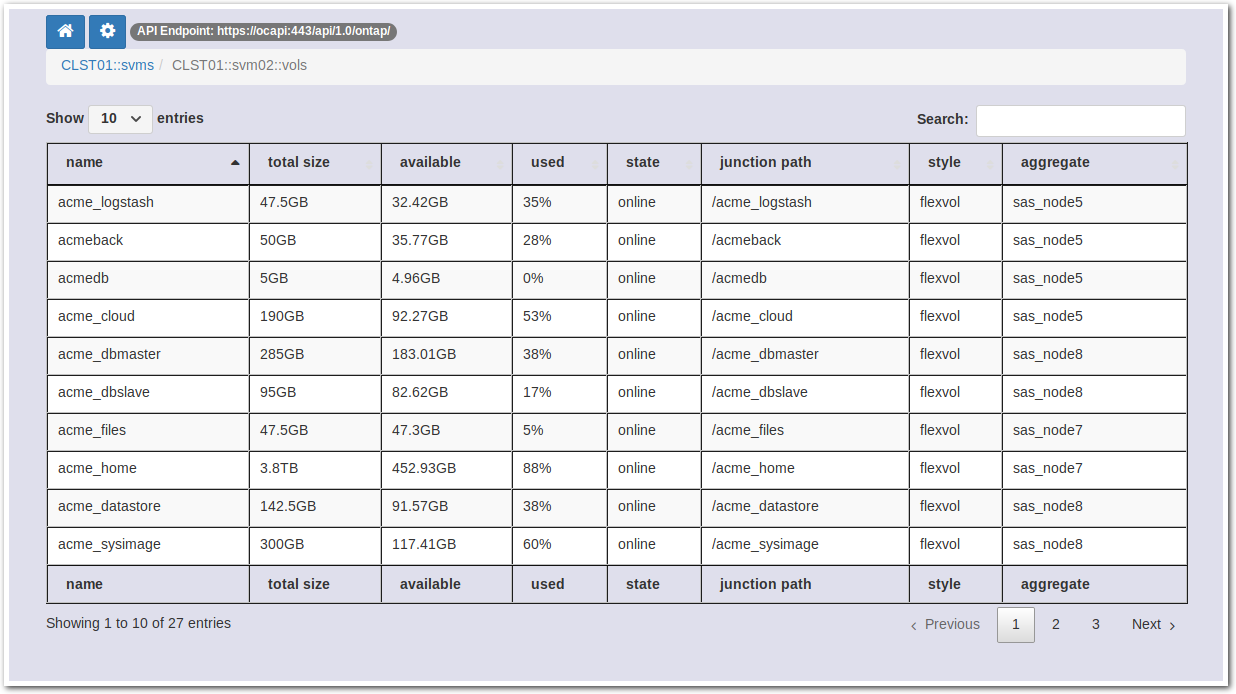

11. Volumes’ view at an SVM level:

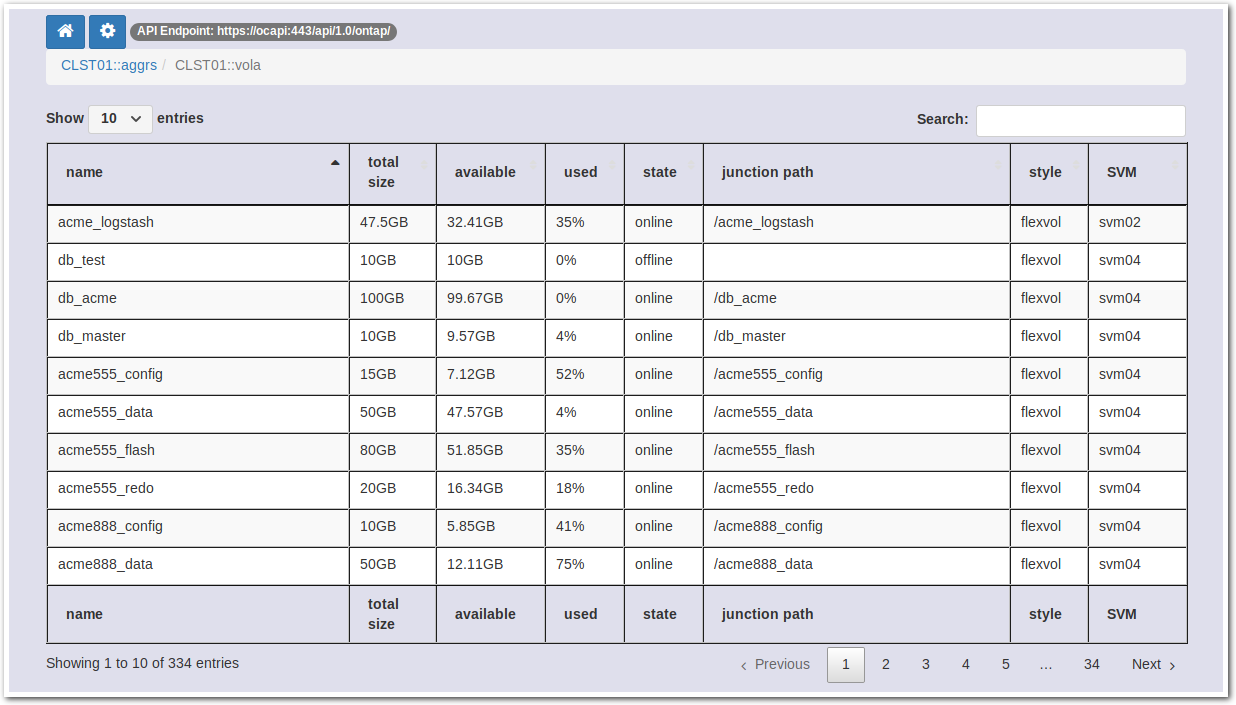

12. Volumes’ view at an aggregate level:



13. Interfaces’ view:



Further reading

• Docker Compose
• Apache
• PHP
• DataTables
• Bootstrap
• jQuery

Notes

This is not an official NetApp repository. NetApp Inc. is not affiliated with the posted examples in any way.
